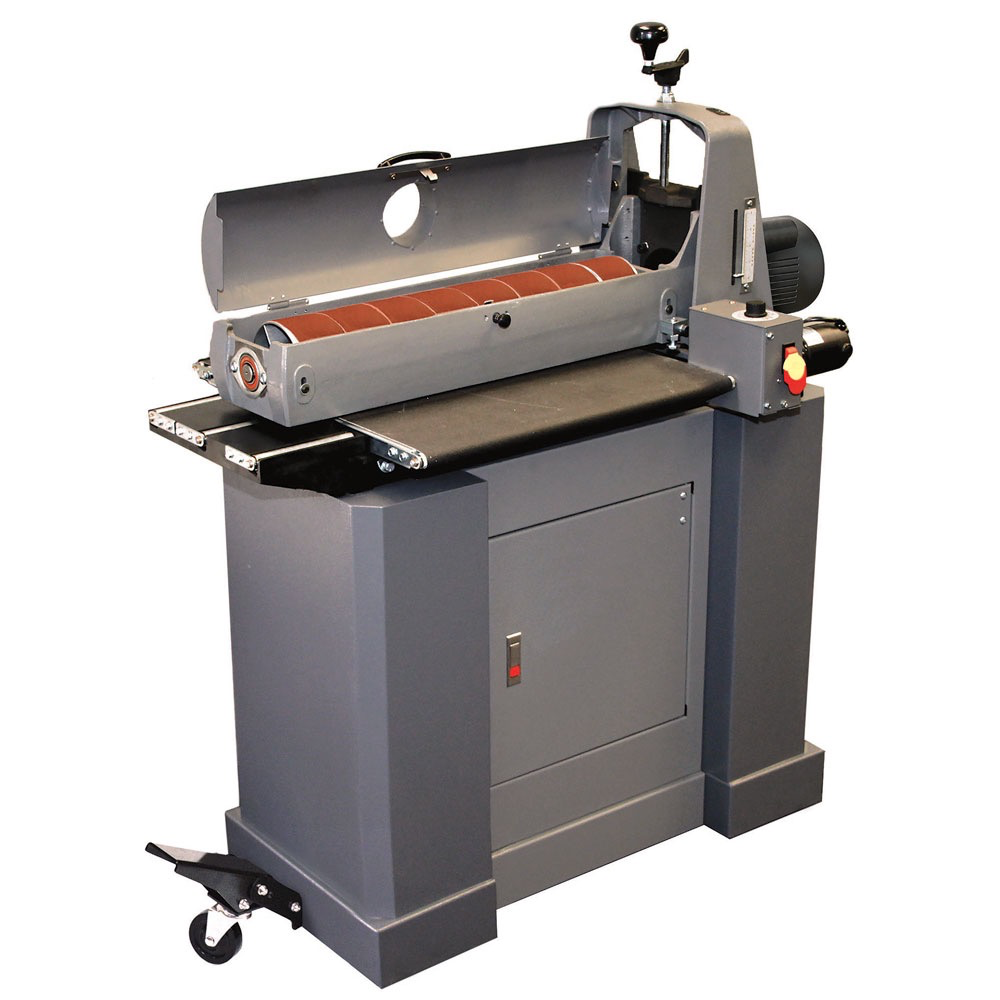

The SuperMax 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25″ in a single pass, and up to 50” in a double pass. Expand the scope of projects you’re able to complete, while increasing speed and consistency in which you’re able to do them!
Features
-
Simple alignment featureJust one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
-
Indexed alignment settingHas an indexed alignment setting for narrow and wide stock. When sanding stock wider than 25”, the index lever will properly adjust the conveyor for flawless wide sanding.
-
Easy height adjustmentsA thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments.
-
Drum will never go “out of alignment”The drum carriage is bolted to the base, preventing any movement or alignment issues.
Additional Features
-
INTELLISAND™ Technology:Automatically adjusts conveyor speed based on load
- Prevents gouging, damaging or burning stock
- Provides consistent finish even with varying grain pattern and density
- Greatly increases abrasive planing and dimensioning speed
-
Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
-
Abrasive conveyor beltoffers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
-
Patented Abrasive Attachment Systemeffectively tensions the abrasive wraps, preventing loose abrasive and overlap
-
Easiest accessto abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools.
-
Self-coolingdrum prevents overheating and extends abrasive life
-
Tension rollers are adjustablein height and hold down pressure, eliminating snipe
-
Excellent dust extractionas dust cover is formed to shape of drum
- Metal, not plastic, is formed to maximize air flow and dust extraction
-
Heavy-duty cast ironconstruction for strength, rigidity and reduced vibration
-
Mobile Baseallows for stand and machine to be to moved easily
Specs
Sanding Capacity: |
Maximum Width (in): 50 (two passes) Minimum Length (in): 2-1/4 Maximum Thickness (in): 4 Minimum Thickness (in): 1/32 |
Dimensions (in): |
27D x 46W x 53H (on stand) |
Drum: |
5 x 25 extruded aluminum |
Drum Speed: |
1740 RPM |
Dust Hood: |
1- 4″ vacuum port, min. 600 CFM recommended |
Conveyor Motor: |
43 in.-lb. torque, direct drive D.C. motor, ranged variable 0-10 FPM |
Drive Motor (TEFC): |
1-3/4 HP |
Power Requirements |
110 V 20 amp |
Shipping Weight (lbs): |
369 (3 boxes incl. stand) |
