- Computer balanced cast iron wheels reduce vibration
- Computer balanced cast iron wheels reduce vibration and noise
- Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
- Micro-adjustable, virtually tool-less bearing guide system gives close blade control while reducing friction
- Oversized side plate can be used in the horizontal or vertical position

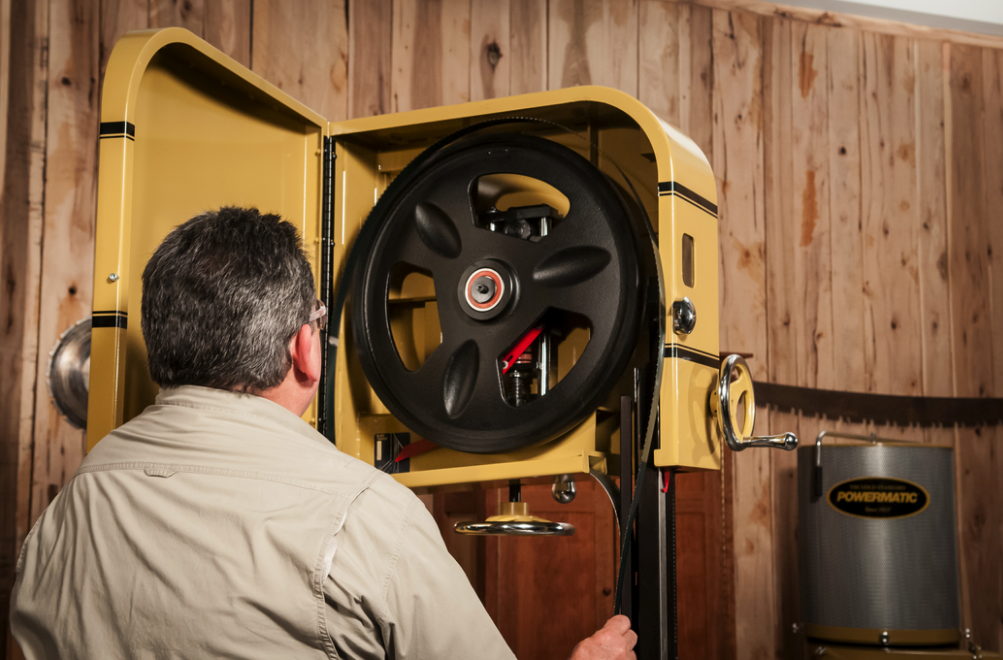

- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Special grooved thrust bearing stabilizes smaller blades
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
Special Order Unit
Please call or email for pricing and ETA
Call 403-255-6044 Or E-mail: info@blackforestwood.com
| Stock Number | PM9-1791801B |
|---|---|
| Model Number | PM1800B-3 |
| Warranty | 5 Year |
| Blade Length (In.) | 160 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Blade Speed (SFPM) | 2300/4400 |
| Cutting Capacity Height (In.) | 18 |
| Cutting Capacity Width (In.) | 18.0000 |
| Dust Port Outside Diameter (In.) | 4 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
| Motor Power (HP) | 5 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Recommended Circuit Size (Amps.) | 20 |
| Table Height from Floor (In.) | 38 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Floor |
| Table T-Slot (In.) | 3/4 |
| Net weight | 834.0 |
| Gross Weight | 930.0 |
