Amana Tool | SKU:
45525

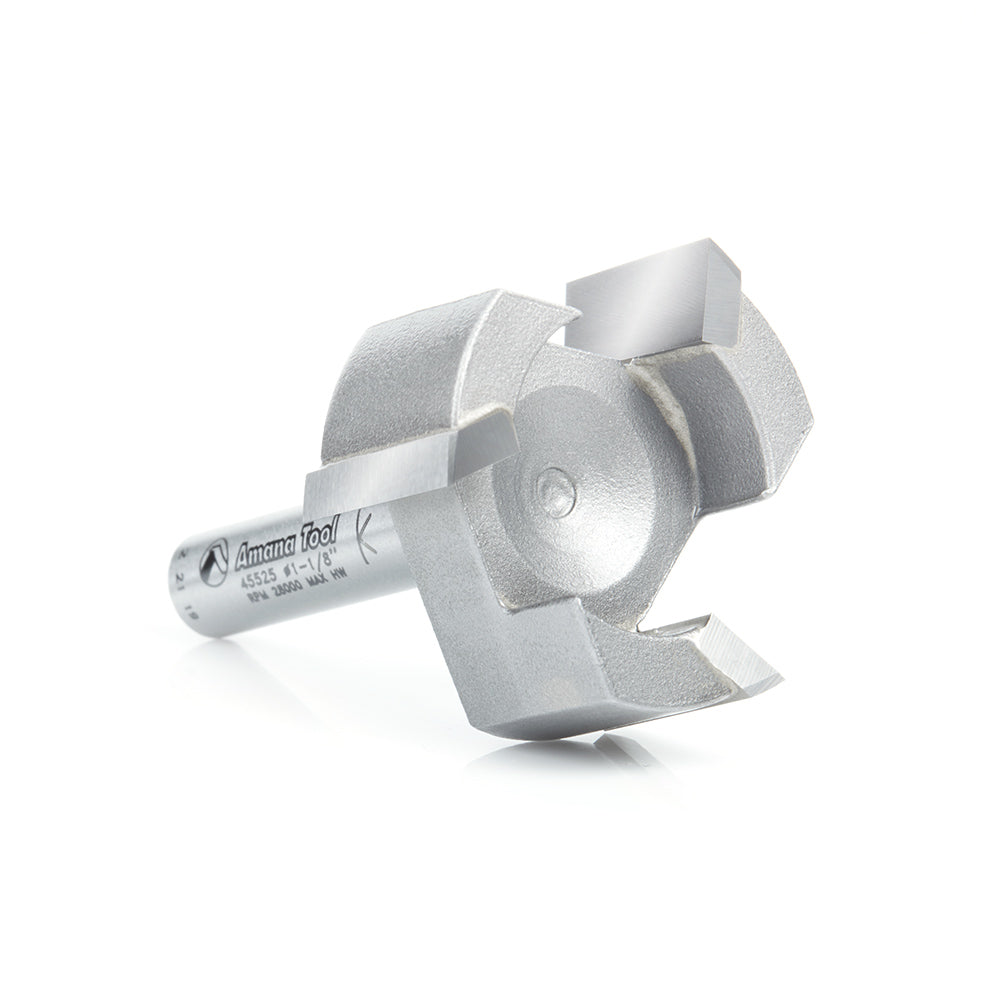

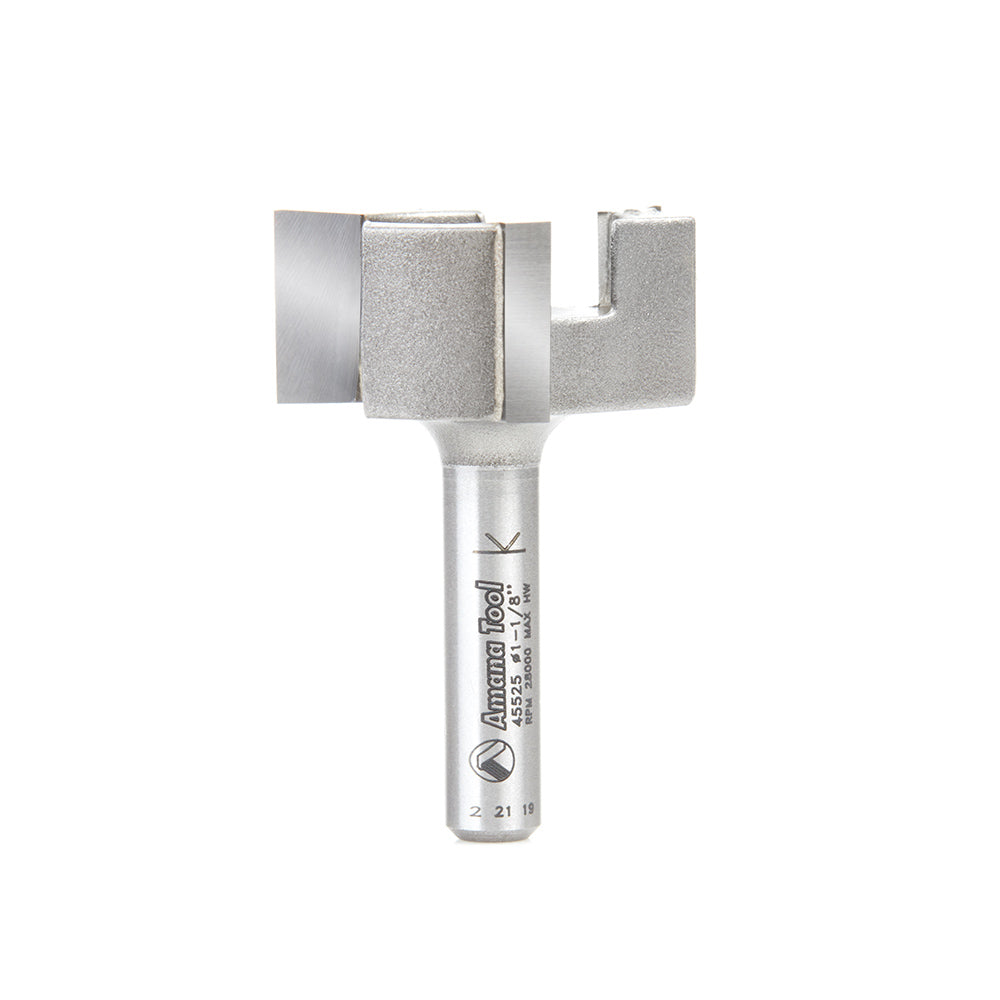

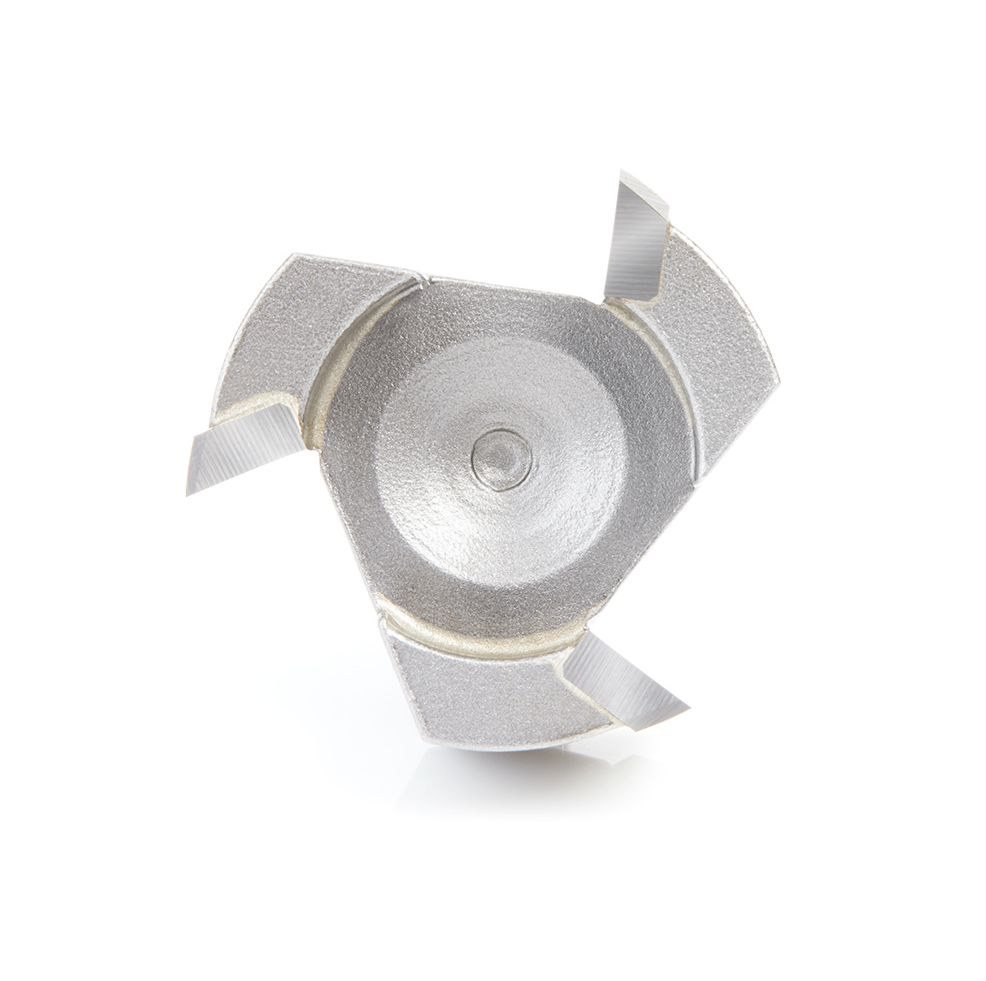

Amana Tool 45525 Spoilboard Surfacing Bit
$5795
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening Router Bit
1-1/8 Dia x 1/2 x 1/4 Inch Shank
Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing. Perfect for removing fine layers of materials.
Also suitable for router sled machines,
Make sure that your router sled is fully stable and squared.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & rabbeting the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core
- Plastic/Acrylic**
- Chipboard
- Hardwood/Softwood
**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.
Featuring:
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
| (D) Diameter | 1-1/8 |
|---|---|
| (B) Cutting Height | 1/2 |
| (d) Shank | 1/4 |
| Overall Length (L) | 1-13/16 |
| Max RPM | 28,000 |
| Flutes | 3 |
