CNC Insert Carbide 5 Wing/Flute Heavy Duty Spoilboard Bit
Couldn't load pickup availability
Description
Description
CNC Insert Carbide 5 Wing Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 3-27/32 Dia x 1-7/32 x 3/4 Shank Router Bit
Insert carbide spoilboard surfacing & chamfering router bit great for cutting large surface areas and surface planing. Higher number of teeth allows for higher feed rate.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & chamfering the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core*
- Epoxy (Epoxy Resins)*
- High Density Urethane (HDU Board)*
- Plastic/Acrylic**
- Plywood/Chipboard*
- Hardwood/Softwood*
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*
*For optimal results and maximum insert life, replace inserts with optional general purpose knives #RCK-457 (sold separately).
** Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.
Featuring:
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
- Tool can plunge up to a maximum depth of 6mm (1/4"), then start resurfacing
- Tool capable of removing very thin layers of material, less than 0.001" per pass
- The unique chamfer corner insert design, creates a flawless surface.
- The 5 wing design, resulting in a more balanced tool while running.
Proper torques rating to tighten down screws is 2-3Nm Torques.

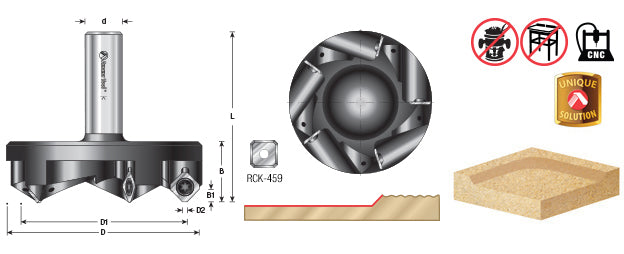

| (D) Diameter | 3-27/32 |
|---|---|
| (B) Cutting Height | 1-7/32 |
| (d) Shank | 3/4 |
| Overall Length (L) | 3-25/64 |
| B1 | 1/4 |
| Max RPM | 12,000 |
| Flutes | 5 |
| D1 | 3-11/32 |
| D2 | 5/64 |
