SawStop  |  SKU: ICS31230-TGI236

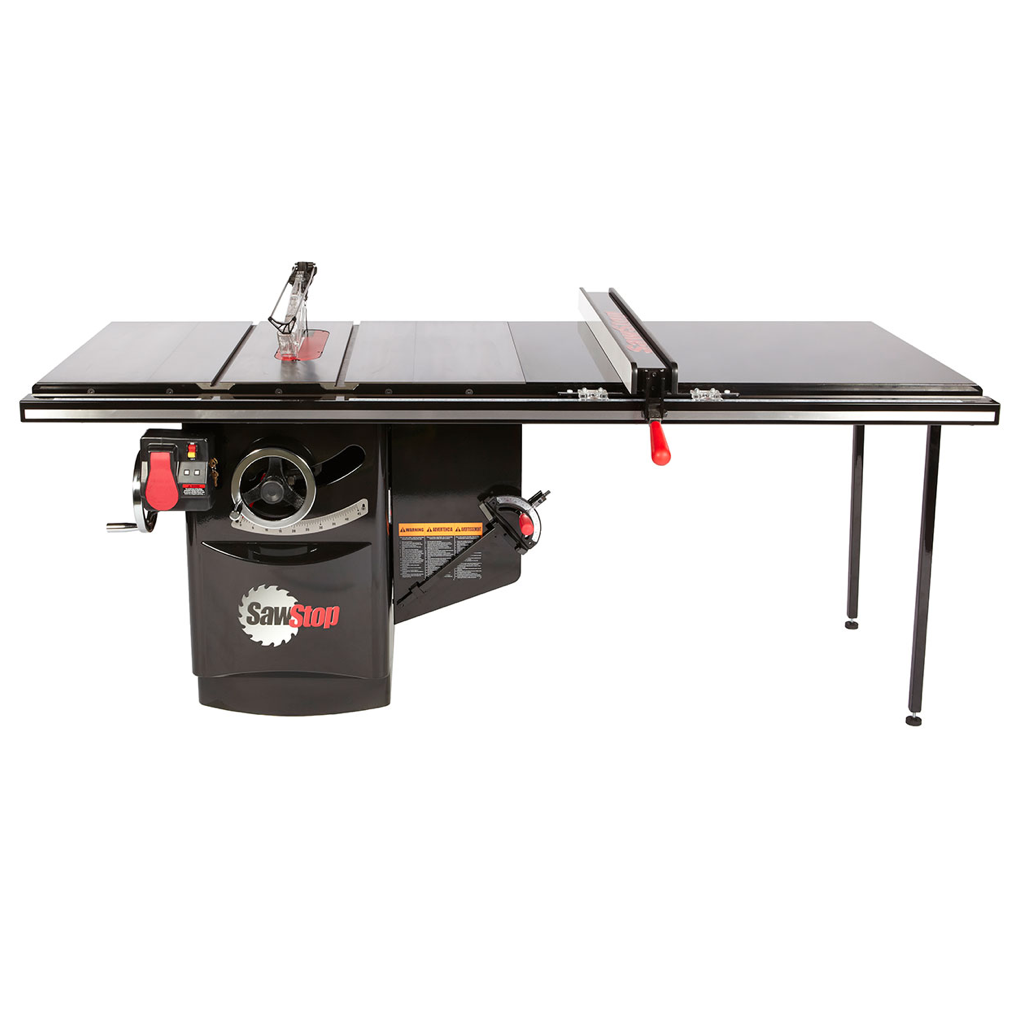

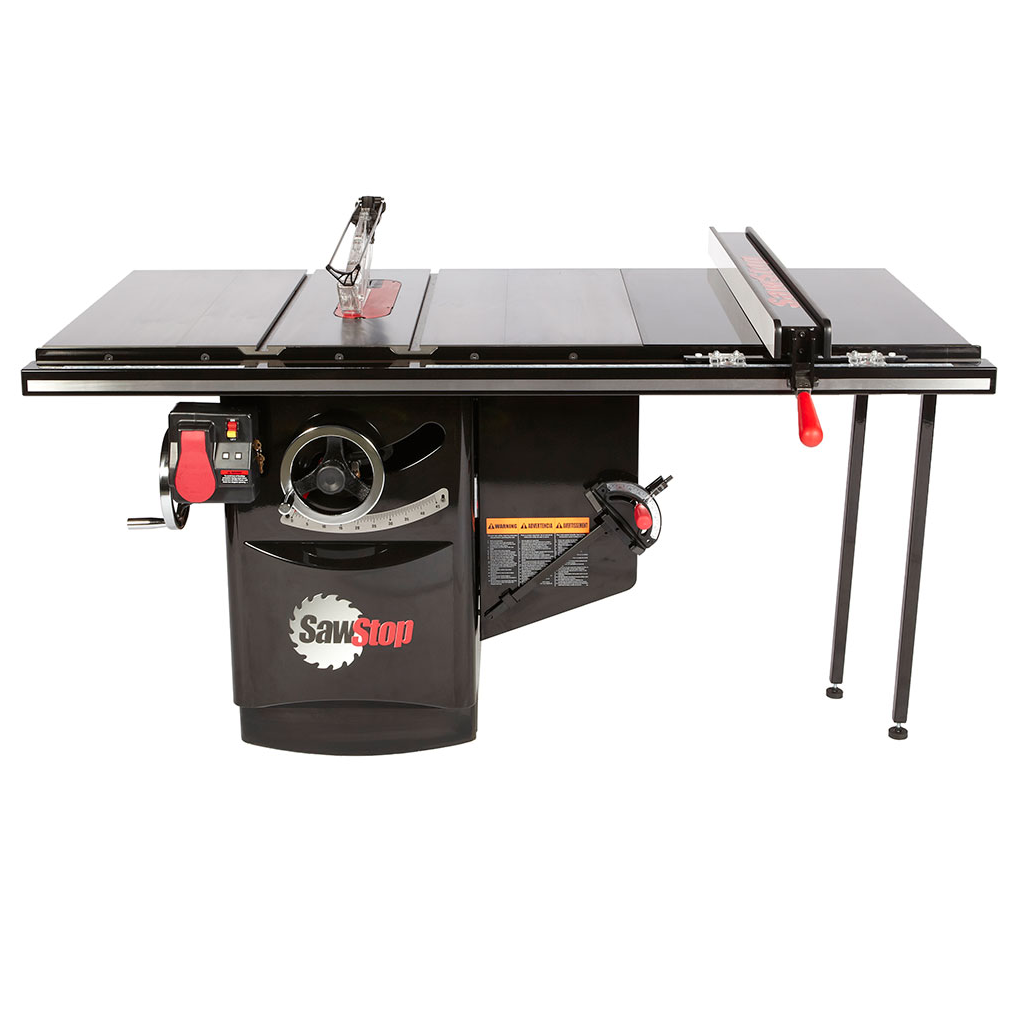

SawStop Industrial Cabinet Saw

$7,12900
Shipping calculated at checkout.
Horse Power
Fence/Rail/Table

Free Shipping on orders over $300.00 to Canada and Mainland USA (some exclusions apply)

Description

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10″ cabinet saw available. The 5HP, 3ph, 230v configuration with a 36″ Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.

36-INCH T-GLIDE FENCE ASSEMBLY: The 36-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. NOW AVAILABLE with the new Advance Fence Assembly - see options below!

STRENGTH & STABILITY: The Industrial Cabinet Saw is almost 700 lbs of iron and steel – built for heavy-duty cycles with maximum stability and precision

EXPANSIVE TABLE: Larger, heavier tabletop provides an extensive cutting surface

DUST COLLECTION: 99% dust collection is delivered above the table with the included dust collection blade guard, and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4” port.

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.

ADDED SAFETY: The Industrial Cabinet Saw has an integrated Lock-Out Tag-Out switch that cuts power to the saw ensuring that only authorized operators can operate the saw. As another added feature, interlock switches on the motor access panels prohibit saw operation if any doors are unlatched.

RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.

Specs

Motor: (all 60Hz, TEFC): 3, 5 & 7.5 HP available
Cabinet footprint: 20" W x 25" D
Cast iron table: 24" W x 30" D
Cast iron table (w/ extension wings): 44" W x 30" D
Extension wings: 10" W x 30" D each
Extension table 36 in: 24" W x 30" D
Extension table 52 in: 40" W x 30" D

Weights - table saw only: 530 lbs
Weights - w/ 36 in fence systems: 635 lbs
Weights - w/ 52 in fence systems: 685 lbs
Shipping weight (approx.): 640 lbs (table saw only)

Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)

Max. depth of cut, blade at 0º: 3 1/8"
Max. depth of cut, blade at 45º: 2 1/4"
Max. rip, right of blade - 36 in: 36 1/2" (w/ optional 36" rails)
Max. rip, right of blade - 52 in: 52 1/2" (w/ optional 52" rails)
Max. rip, left of blade: 12 1/2"
Dado diameter: 8" (requires a separate brake cartridge and insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"


Overall saw dimensions: 44" W x 34" D x 34" H
Overall saw dimensions 36 in: 69 1/4" W x 36 1/2" D x 34" H
Overall saw dimensions 52 in: 85 1/4" W x 36 1/2" D x 34" H
