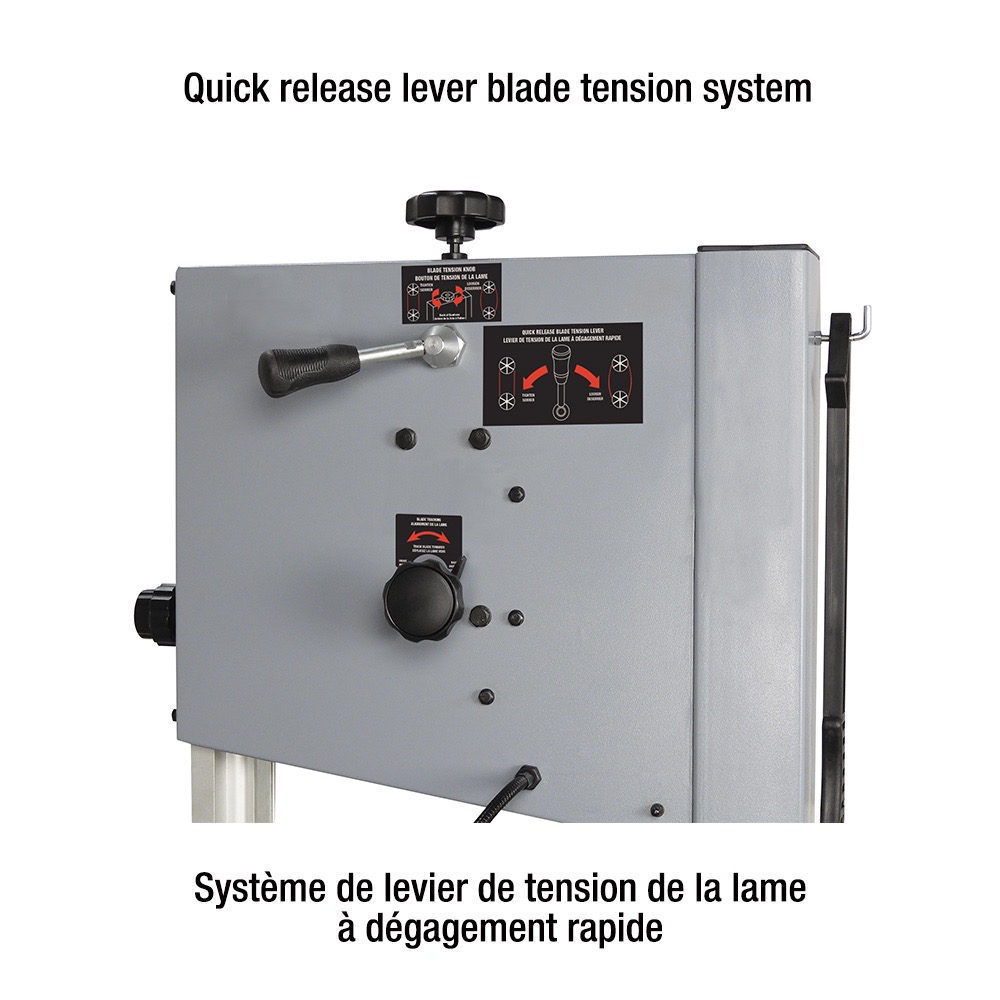

Powerful 3/4 HP 120V motor Adjustable upper/lower ball bearing blade guide system Large 18-7/8" x 15-3/8" tilting table with rack & pinion adjustment Flexible LED light increases workpiece visibility Belt tension adjustment knob Rack & pinion height adjustment system Circle cutting guide for diameters up to 23-1/2" Dust chute accepts 2", 3" and 4" dust collector hoses Comes complete with cast aluminum miter gauge, rip fence with 5" high face, push stick, adjustment wrench and hex keys

Specs

• MODELKC-1202FX
• CUTTING CAPACITY FRAME TO BLADE12"
• MAXIMUM DEPTH OF CUT6-3/4"
• TABLE SIZE18-7/8" x 15-3/8"
• TABLE HEIGHT FROM FLOOR38-7/8"
• BLADE SIZE88-3/16" x (1/8" - 3/4") x 0.025"
• MOTOR3/4 HP
• AMPERAGE6.4 Amp.
• VOLTAGE120V, 1 phase, 60 Hz
• SPEEDS2 (1312, 2952) SFPM
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT33" x 24" x 6-1/2" / 106 lbs
• PACKAGING DIMENSIONS (LXWXH) / WEIGHT45-5/8" x 21" x 17-3/8" / 110 lbs
