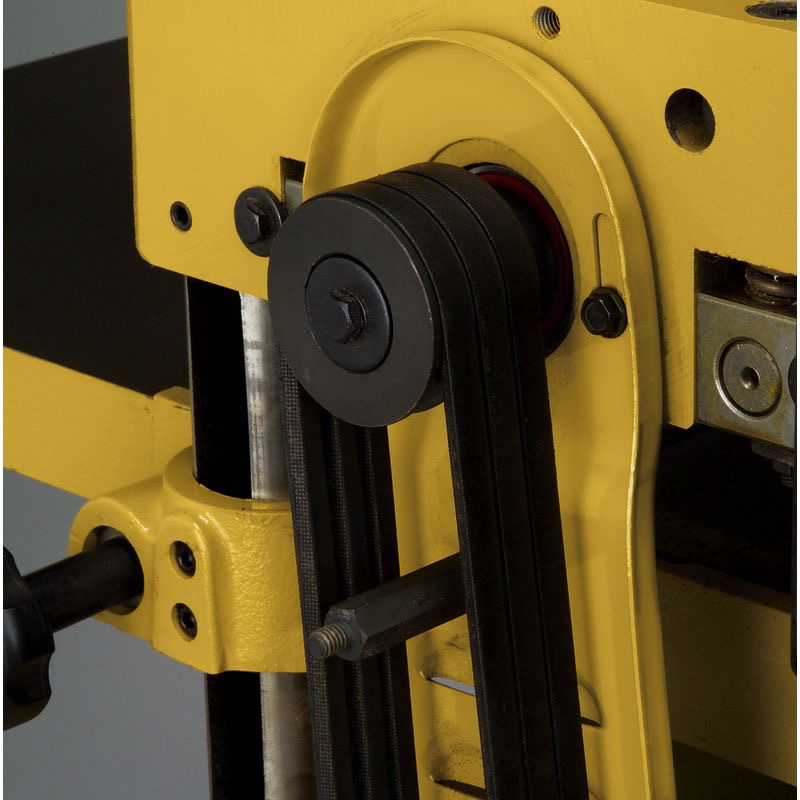

The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4" dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.
-The helical cutterhead with 74 four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems-Powerful 3HP TEFC motor controlled with a magnetic switch for safety-Three V-belts transfer maximum power to the cutterhead-Serrated steel infeed roller and smooth steel outfeed roller allow for 1/4" maximum depth of cut and trouble free operation-Large cast iron handwheel positions table quickly and easily-Large, precision ground cast iron table and extensions provide maximum workpiece support-Two speed gearbox features automatic chain tensioner-One-piece welded steel stand has built-in lockable casters-Steel top-mounted return rollers speed repetitive cuts-Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection-Table locks firmly in place, preventing movement during cutting-Standard Equipment:-3HP TEFC motor with magnetic controls-Closed stand with built-in casters-4" diameter dust port-Cast iron extension tables
Style (Type)PlanerType of CutterheadHelicalKnife Size (L x W x T)15 x 15 x 2.5Cutterhead Speed (RPM)4,500Cutterhead Diameter (In.)2-7/8Number of Knives74Maximum Depth of Cut (In.)1/4Maximum Full Width Depth of Cut (In.)1/8Maximum Planing Width (In.)14-7/8Maximum Planing Thickness (In.)6Minimum Planing Length (In.)8Feed Rate (FPM)16/20Infeed Roller Diameter (In.)2.07Segmented Infeed Roller Diameter (In.)2.07Outfeed Roller Diameter (In.)2.07Bed Rollers Adjustable from FrontN.A.Table Size with Extensions (L x W) (In.)15 x 48Table Support4 ColumnColumn Diameter (In.)2-3/16Dust Collection Minimum CFM Required (CFM)800Dust Port Outside Diameter (In.)4Motor Power (HP)3Motor Phase1Motor Voltage (V.)230 onlyRecommended Circuit Size (Amps.)30
