Laguna Tools

CFLUX2

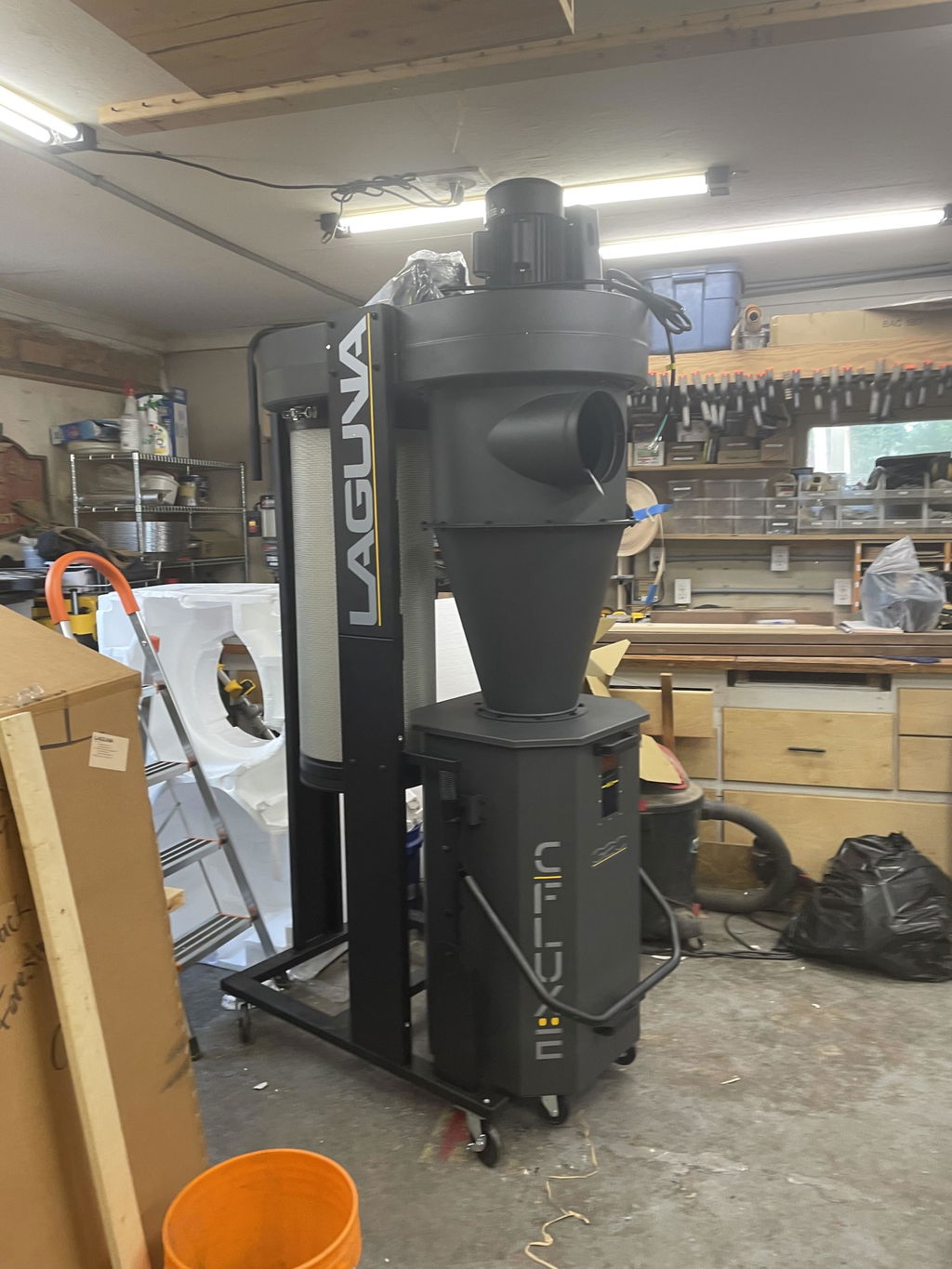

2 HP c flux Cyclone Dust Collector, Laguna Tools, 2HP, 220V, 1 PH, CSA Certified

The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance.

  • Motor HP: 2 HP
  • Phase: 1
  • Voltage: 220v
  • Amps: 14 Amps
  • Recommended Breaker: 20 AMP
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Switch type: Radio Frequency Remote switch – Black Box
  • Hand held remote control: HF
  • Shop Setting CFM*: 1166
  • Inlet CFM: 1740
  • Max Static Pressure (inches of water): 9.3″
  • Impeller/Fan Size: 14.5″
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 8″ main to  4″ x 2 ports
  • Drum Capacity: 46 Gal.
  • Octagon drum: Metal drum insert
  • Drum collection bag (Dia. x L): Plastic bag (610 x 950mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: 400mm (15.75″)
  • Cansiter length: 900mm (19.69″)
  • Filter Surface Area: 9.5m²/109ft²
  • Canister cleaning: Manual Handle Crank/*Optional Auto Cleaning Kit available
  • Canister filter lower dust collection: Plastic bag (400 x 600mmL)
  • Base with perforated sheet across canister floor: N/A
  • Wheels: 4″ Flat Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 88 d B(A) (@9.8ft)
  • Machine weight: 134kgs/296Lbs
  • Shipping weight: 165kgs/364Lbs
  • Assembled Dimensions (L x W x H): 46″ x 27″ x 79″ | 1178x690x2025mm
