Powermatic

1353001

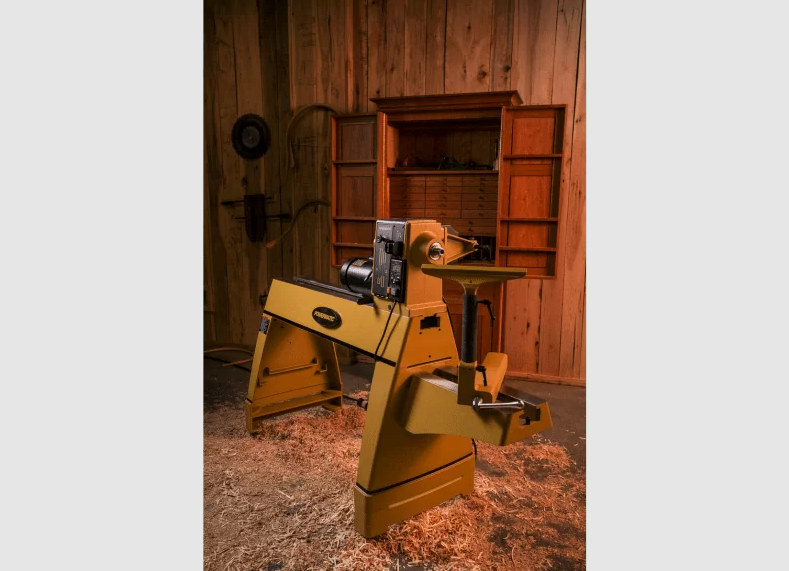

3520C Wood Lathe 230V, 2HP, 1PH, CSA

$4499.99 USD

All Powermatic pricing is in US funds & can be paid via wire transfer or bank draft. Please call for inquiries at 403-255-6044.

The Powermatic® 3520C is the fourth evolution of the time honored lathe with many new and improved features. The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout, and a laser etched quill that is self-ejecting. The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6 inches or more of height adjustment, and an increased weight of 726 LBS (814 LBS with the bed extension). Additional features include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.

-The helical cutterhead with four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems -5HP motor and 20" planing capacity for heavy duty work -Fully enclosed base cabinet with integrated casters for shop mobility -Cast iron table with extensions creates a big 55-1/2" x 20" working area -Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility -Feed rollers and cutterhead supported by full cast iron head assembly for rigidity -Standard Equipment: -Helical cutterhead with four-sided knife inserts -5" diameter dust port -Cast iron extension tables
Style (Type) Planer Type of Cutterhead Helical Knife Size (L x W x T) 15 x 15 x 2.5 Cutterhead Speed (RPM) 5,000 Cutterhead Diameter (In.) 3-3/16 Number of Knives 100 Maximum Full Width Depth of Cut (In.) 3/32 Maximum Planing Width (In.) 20 Maximum Planing Thickness (In.) 8 Minimum Planing Length (In.) 6-3/4 Feed Rate (FPM) 24/31 & 16/20 Number of Speeds 4 Bed Rollers Adjustable from Front N.A. Table Size (L x W) (In.) 20 x 55-1/2 Table Support 4 Column Dust Collection Minimum CFM Required (CFM) 900 Dust Port Outside Diameter (In.) 5 Motor Power (HP) 5 Motor Phase 1 Motor Voltage (V.) 230 only Motor Current (Amps) 28 Recommended Circuit Size (Amps.) 40
