Laguna Tools  |  SKU: MJ8X72P-0130

JX|8 PRO JOINTER, 8" ShearTec II

$4,19900
Shipping calculated at checkout.

Free Shipping on orders over $300.00 to Canada and Mainland USA (some exclusions apply)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

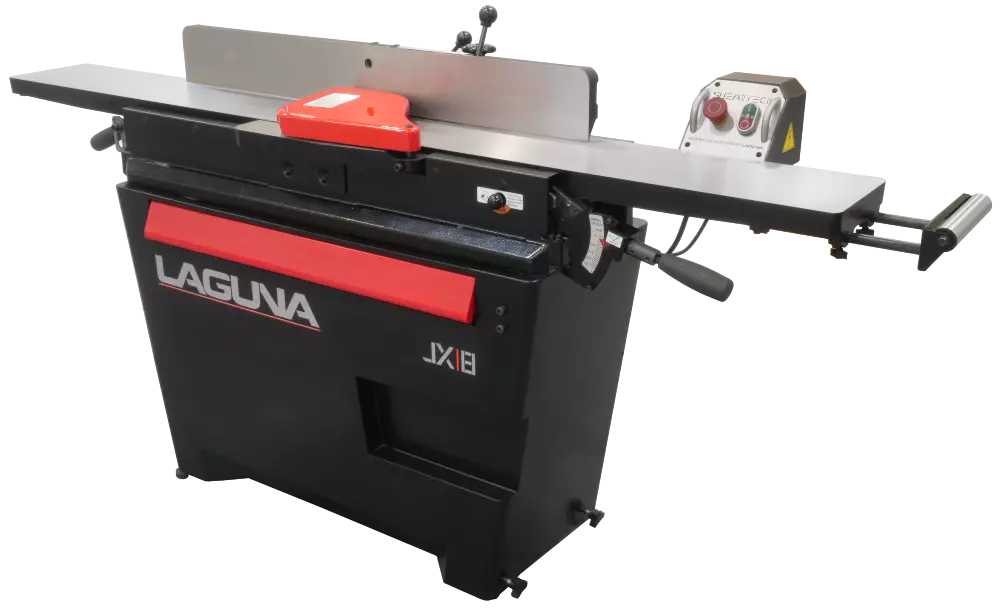

JX|8 ShearTec: II Jointer

The Laguna JX|8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 220 volt 3 HP version.

Features:
  • Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel.
  • Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
  • New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine.

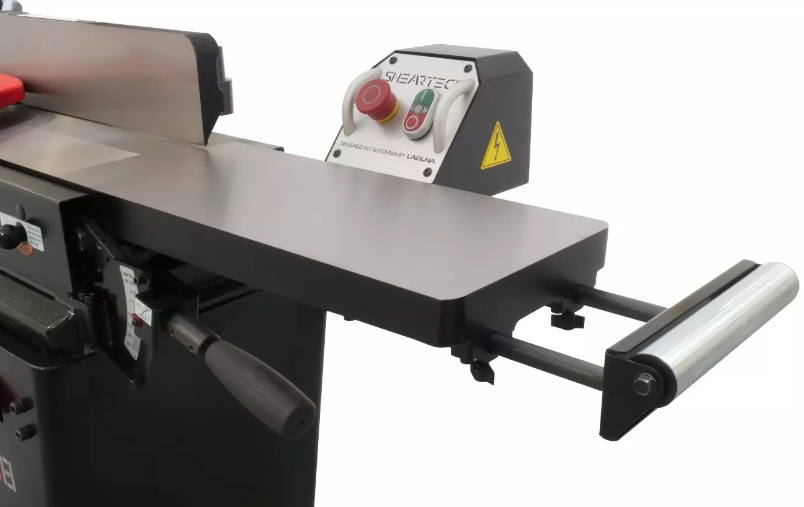

  • In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials.
  • ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer.
  • Built-In Wheels – No need to purchase a separate mobility kit.
  • Cast-Iron Tables and Fence


Laguna Tools MJ8X72P-0130 Specifications:

  • Motor: 3 HP, 220 Volt, 1 Phase, TEFC
  • Motor Amperage Rating: 13A
  • Cutter-Head RPM: 5000RPM
  • Adjustment: Parallelogram w. Crank
  • Max. Width: 8
  • Max. Depth: ½
  • Rabbeting Capacity: ½
  • Knife System: Shear-TecII
  • 4 Sided Carbide 6 Row X 9 = 54
  • Cutter-Head Diameter: 3
  • Table Dimensions: 8 X 83
  • Fence Dimensions: 4 ¾ X 40
  • Fence Tilt: 90° & 45° with Positive Stop
  • Table Height: 33
  • Dust Port: 4
  • Wheel System: Built-In
