203170

DOMINO connector range KV-SYS D8

Functions:

The new DOMINO connectors make knock-down joinery simple and stable. Quickly and easily assemble, separate, and reassemble your work for increased flexibility across a wide range of applications – from corner panel joints to center panel joints to joints between a series of holes. For increased stability, speed, and flexibility.

  • The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally - in combination with DOMINO or a series of holes.
  • Because of its high tolerance compensation and high stability, the detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer.
  • All joints are simple and quick to machine using the DOMINO DF 500 joiner. No additional special machine is required.
  • The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
  • Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture.
  • The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly.

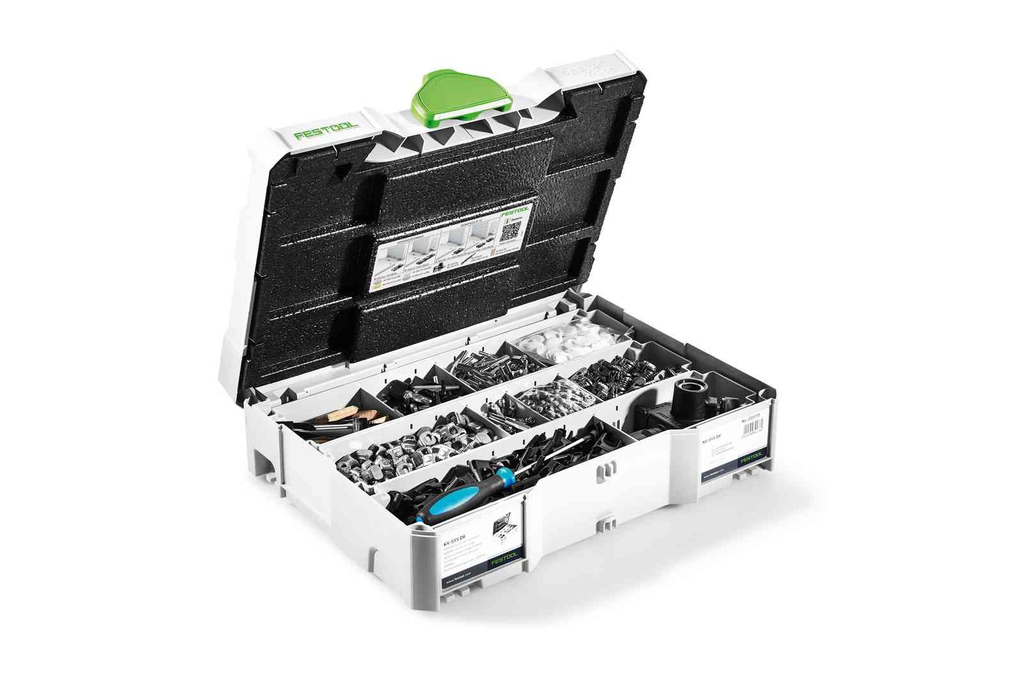

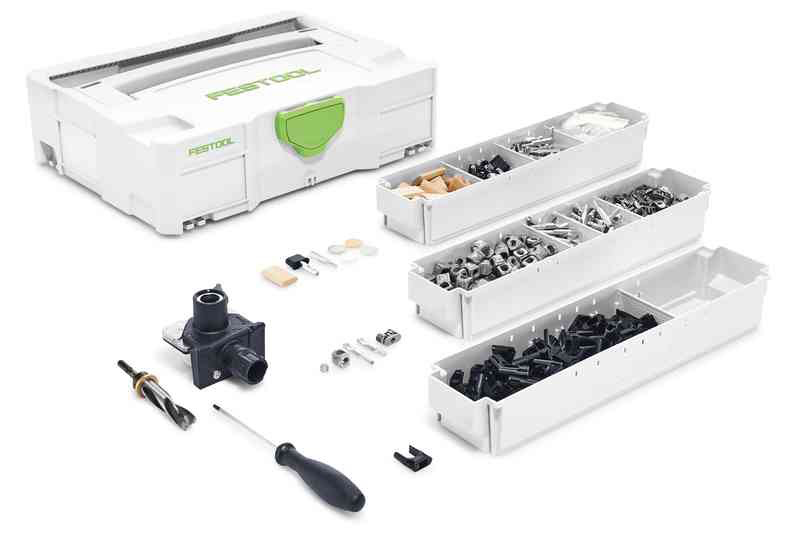

Includes:

  • 70x DOMINO/DOMINO KV D8 basic structure connector
  • 20x DOMINO/LR32 KV-LR32 D8 basic structure connector
  • 10x DOMINO/DOMINO MSV D8 center panel connector
  • 10x DOMINO/LR32 MSV-LR32 D8 center panel connector
  • 50 dark brown cover caps (KV-AK D15 brown)
  • 50 silver cover caps (KV-AK D15 sliver)
  • 50 white cover caps (KV-AK D15 white)
  • 50 grey cover caps (KV-AK D15 grey)
  • 20x DOMINO D 8 x 36 mm
  • BS-KV D15 drill template
  • KVB-HW D15 CE hinge location cutter
  • Screwdriver
  • Systainer SYS 1 T-LOC
×
