SawStop  |  SKU: PCS175-PFA30

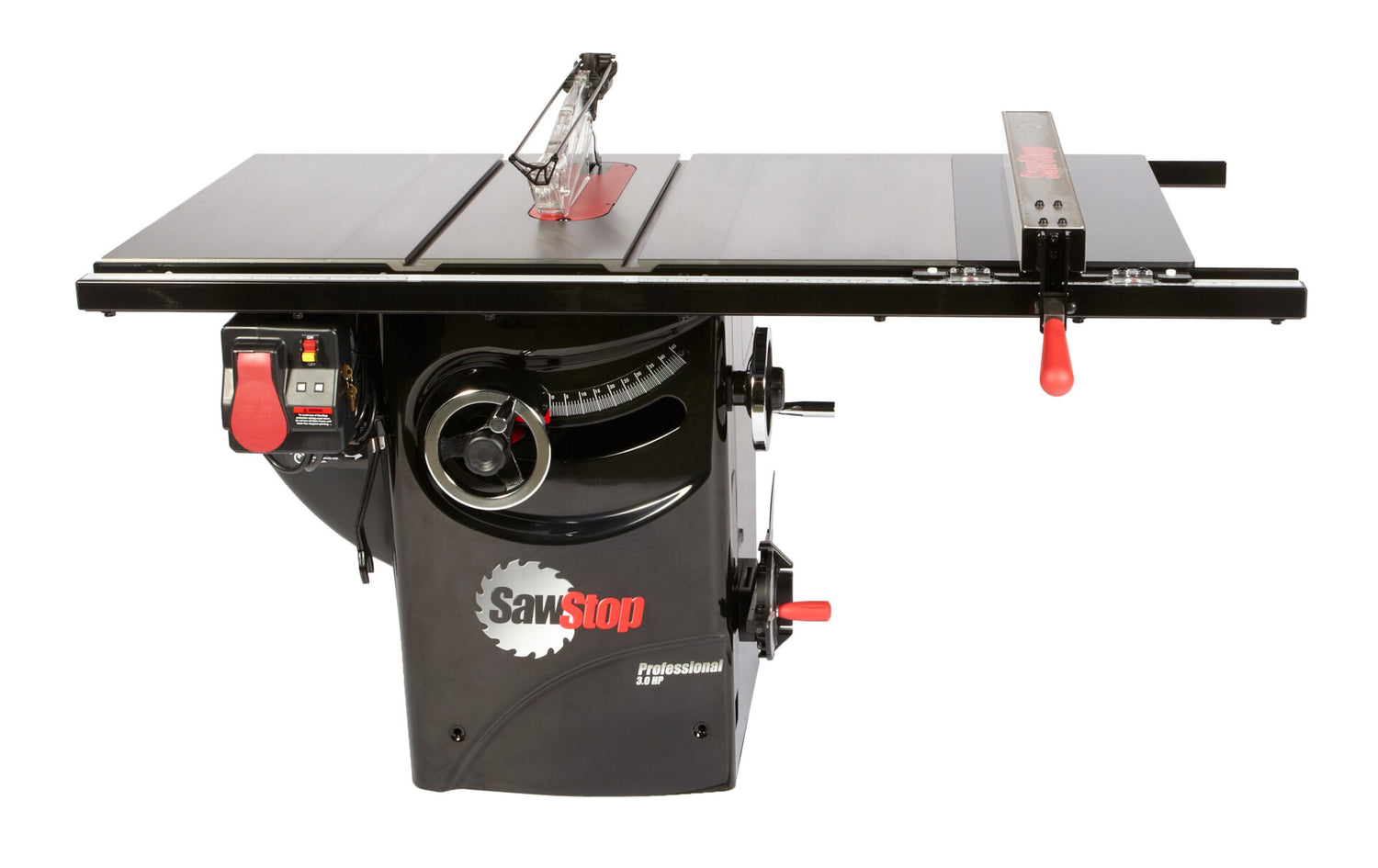

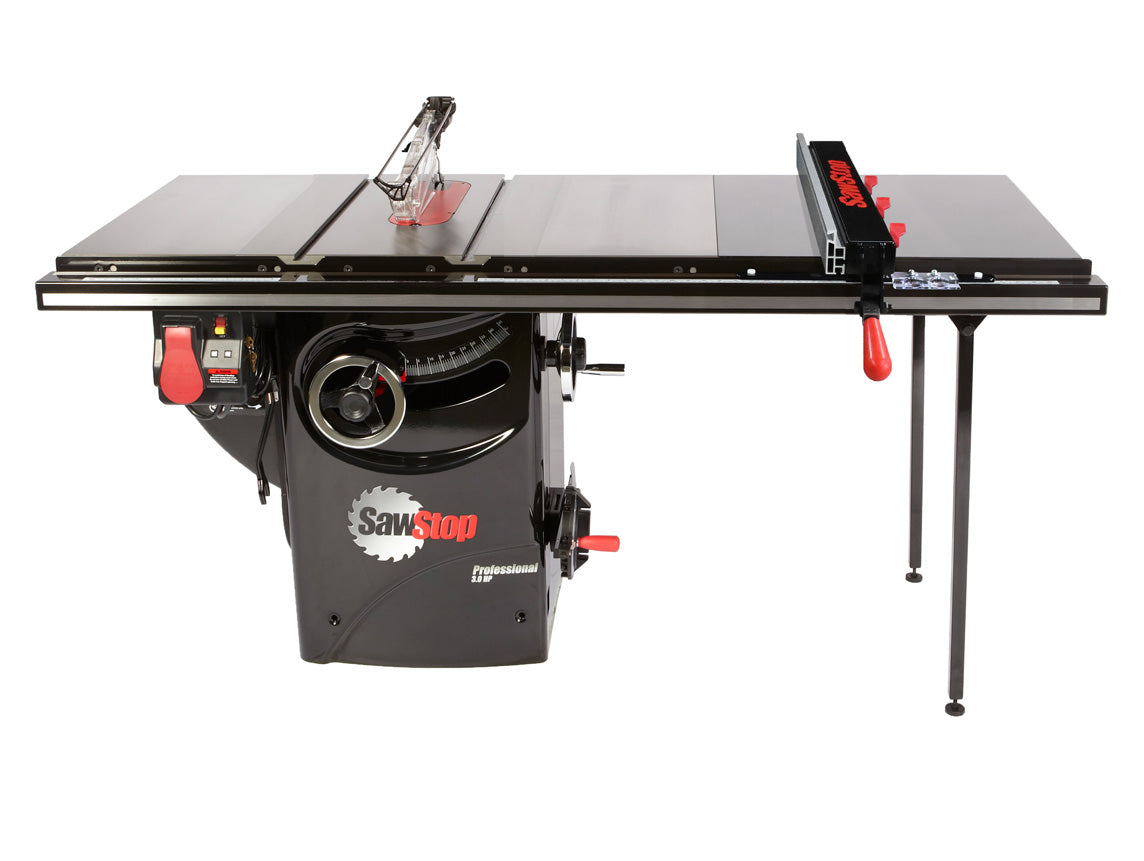

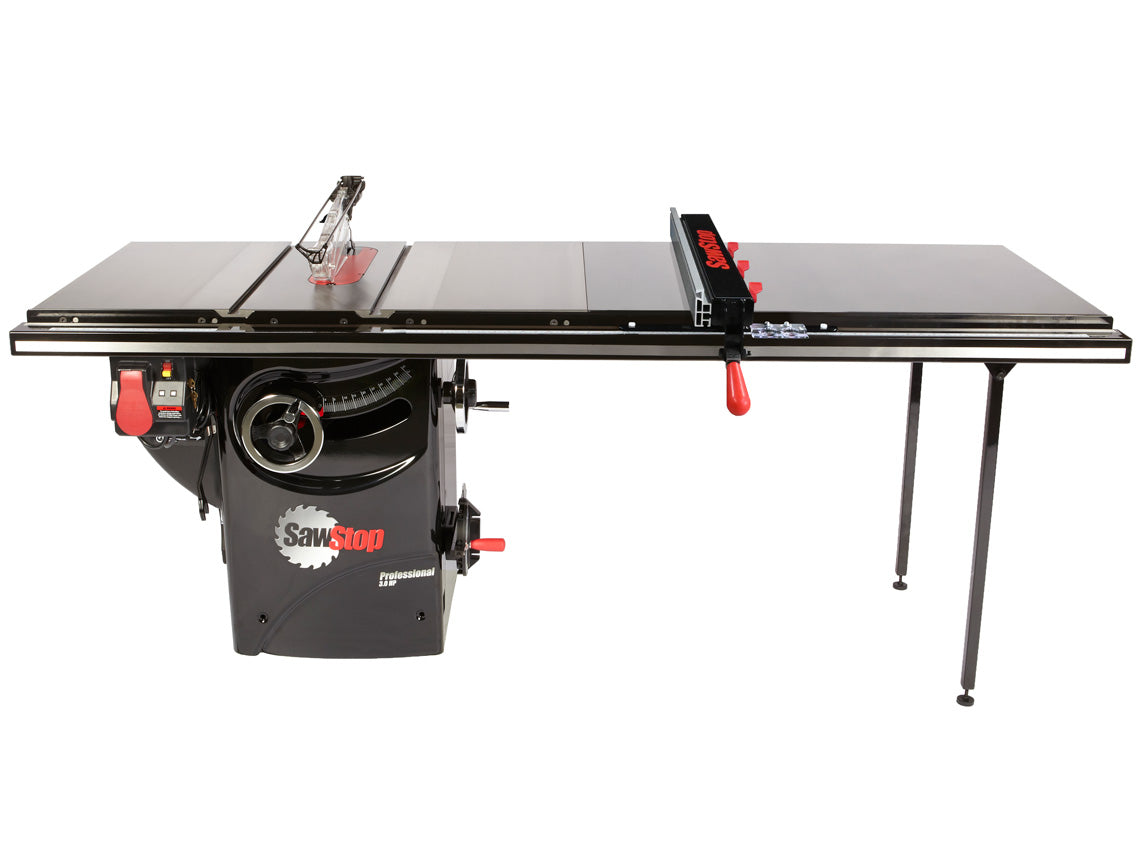

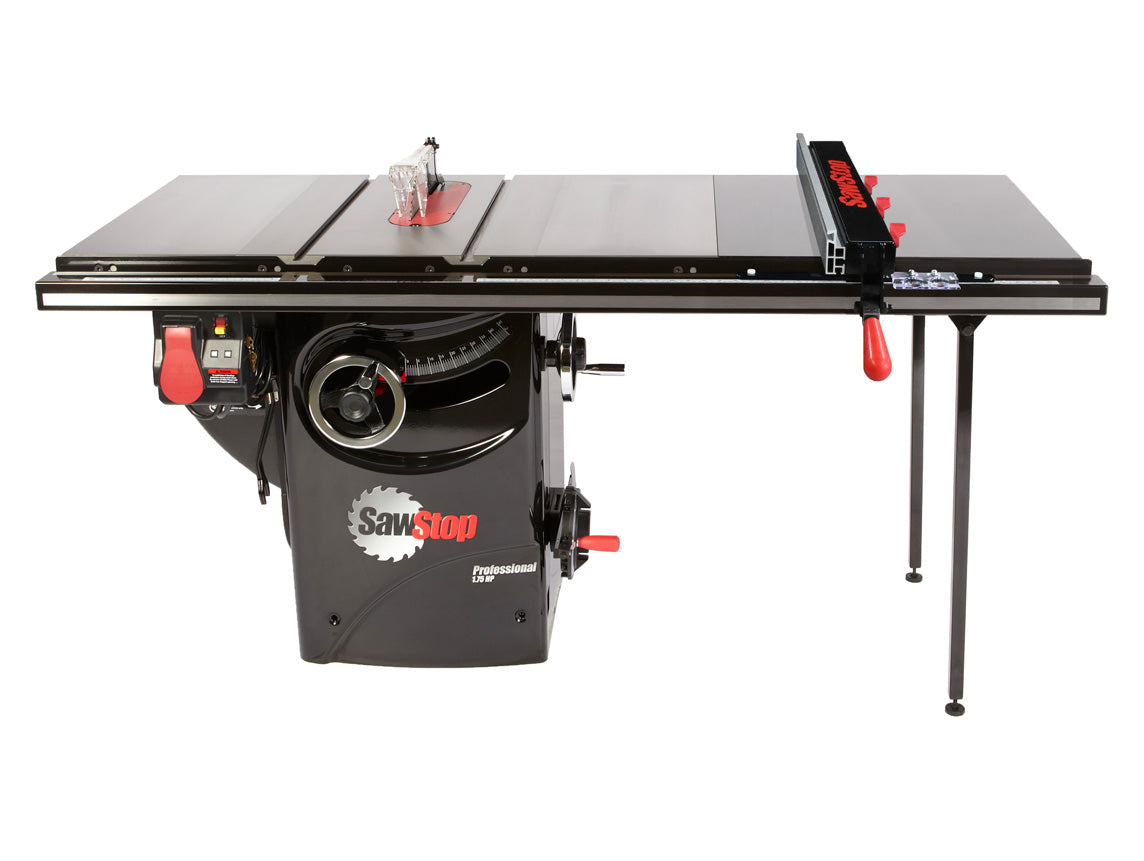

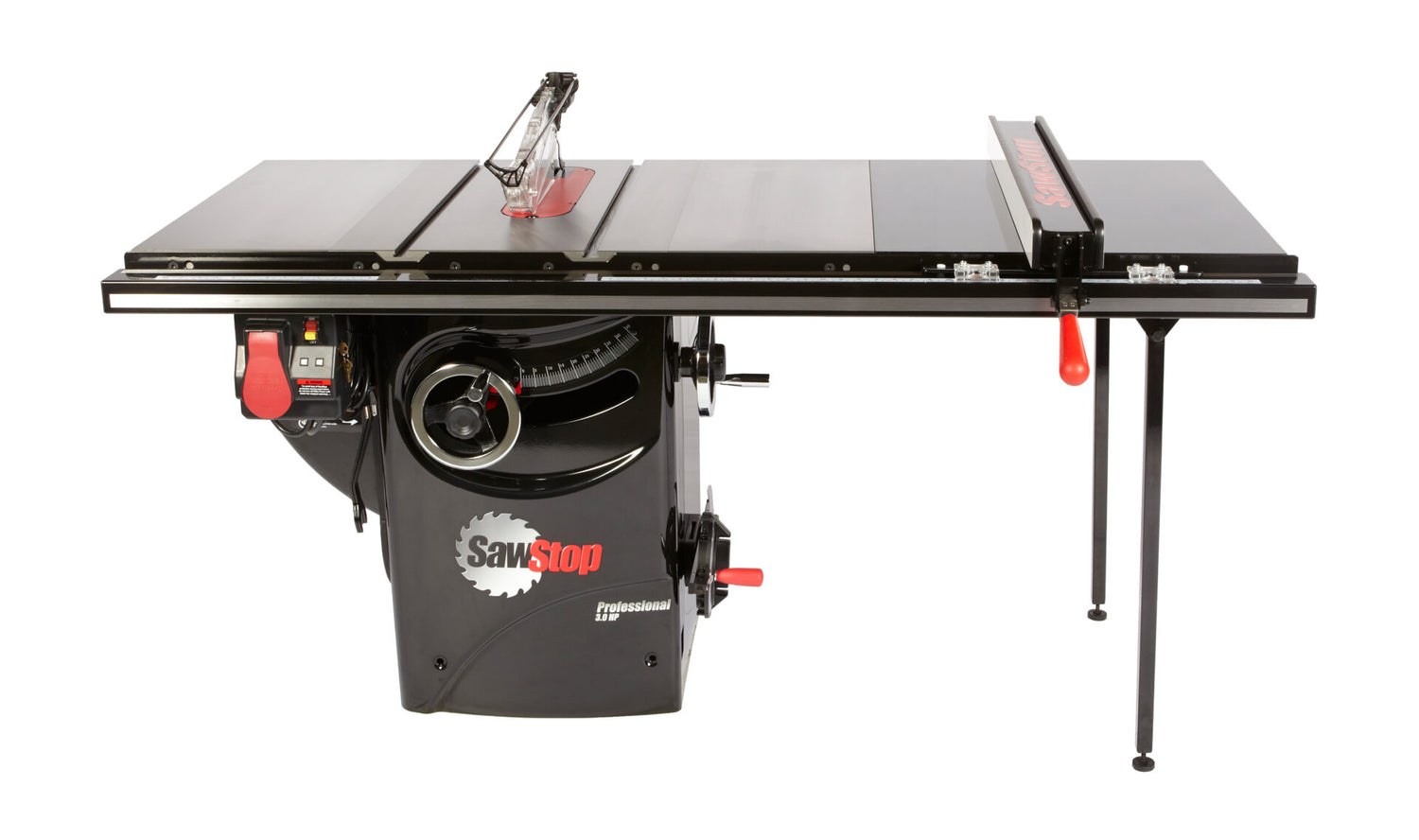

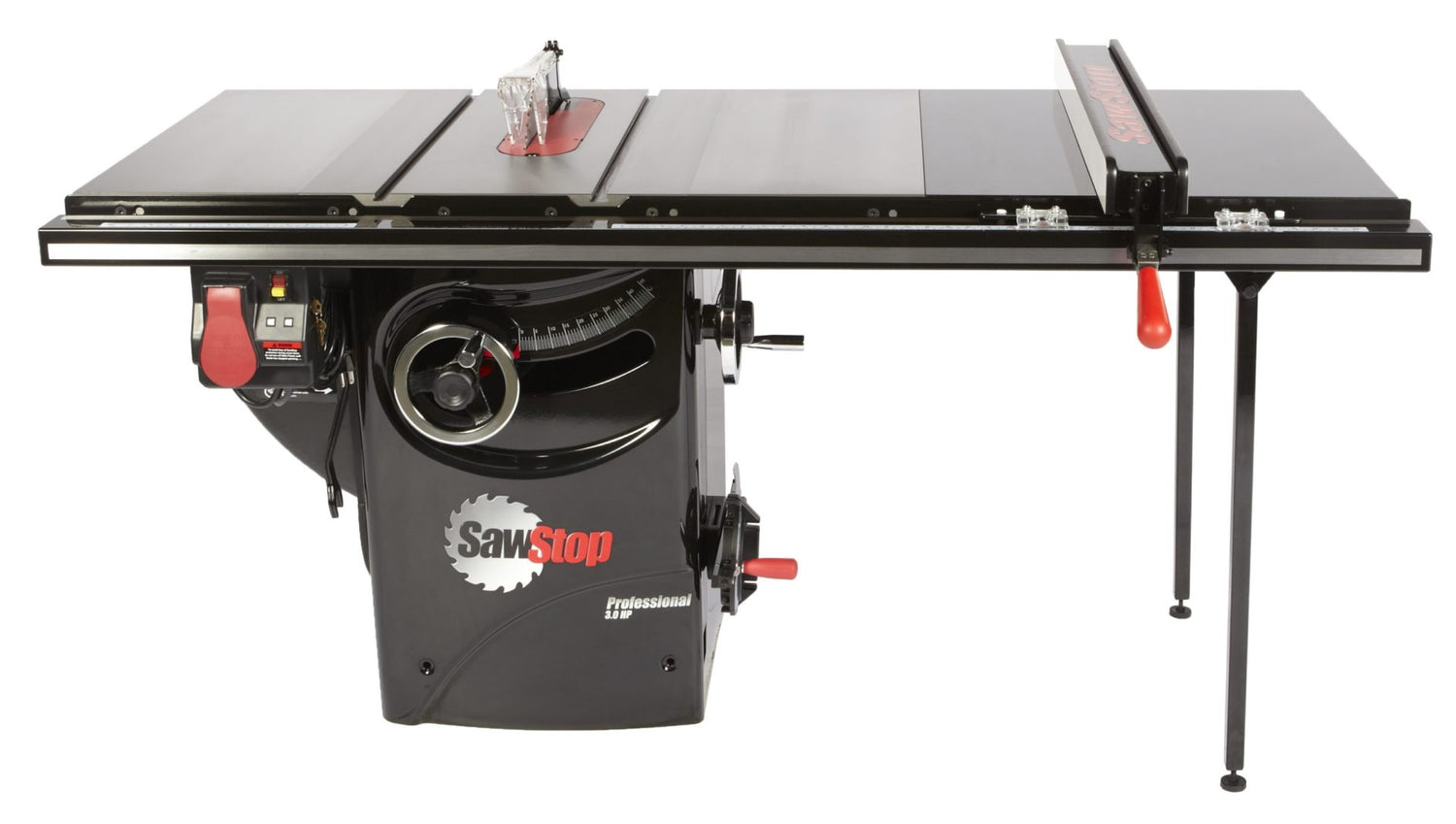

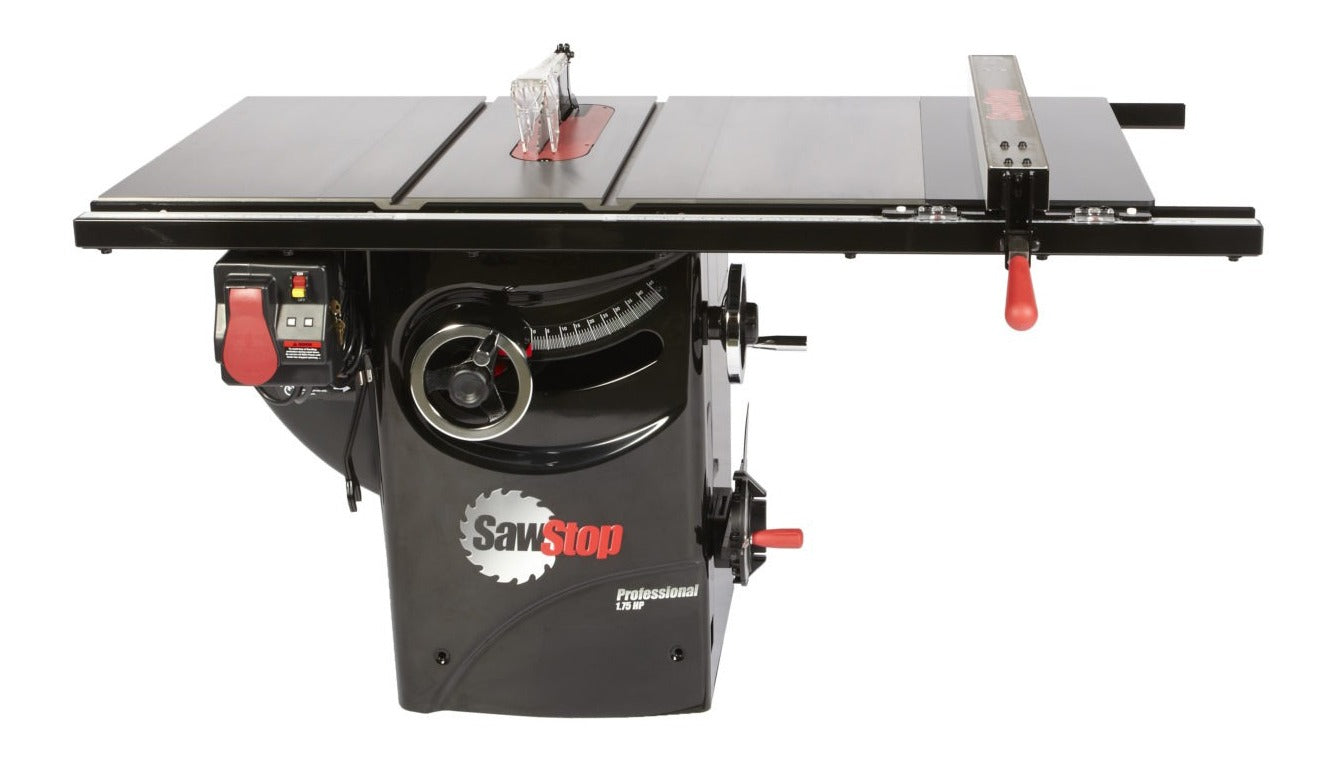

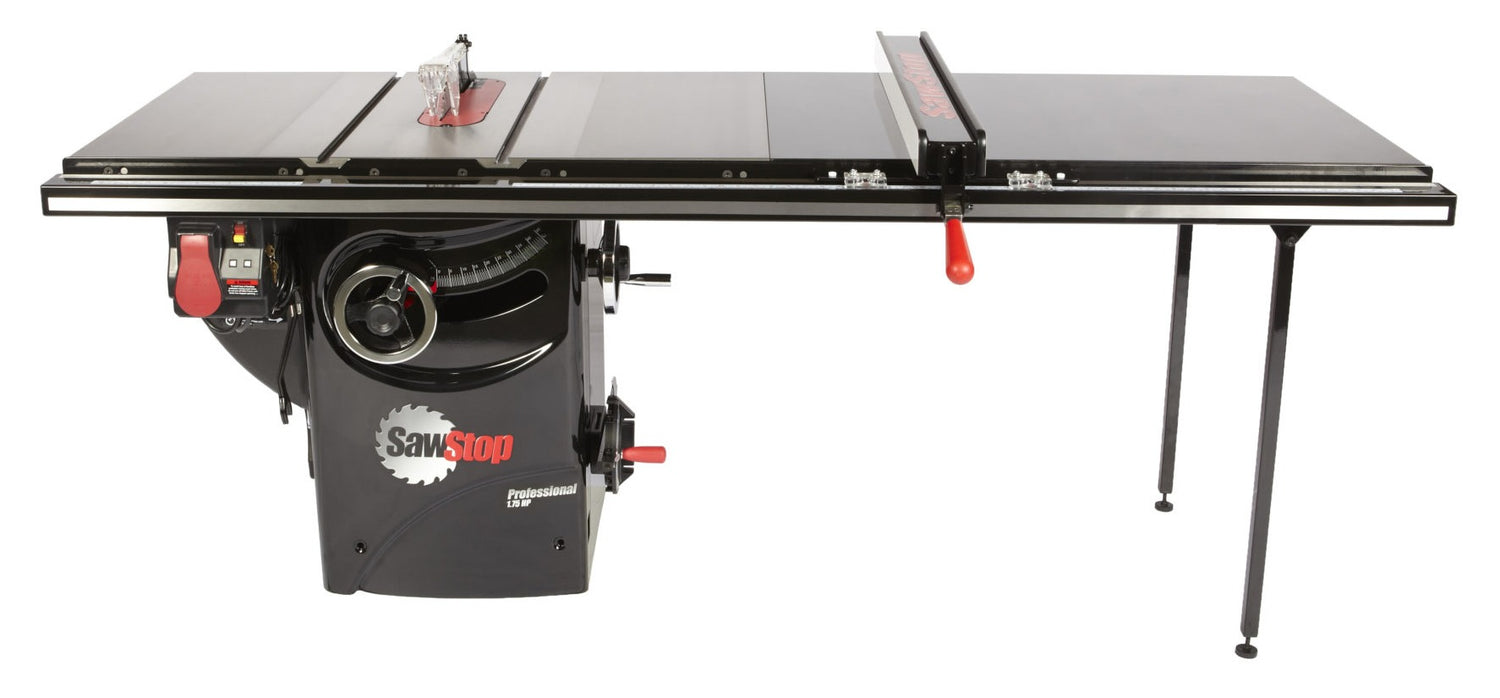

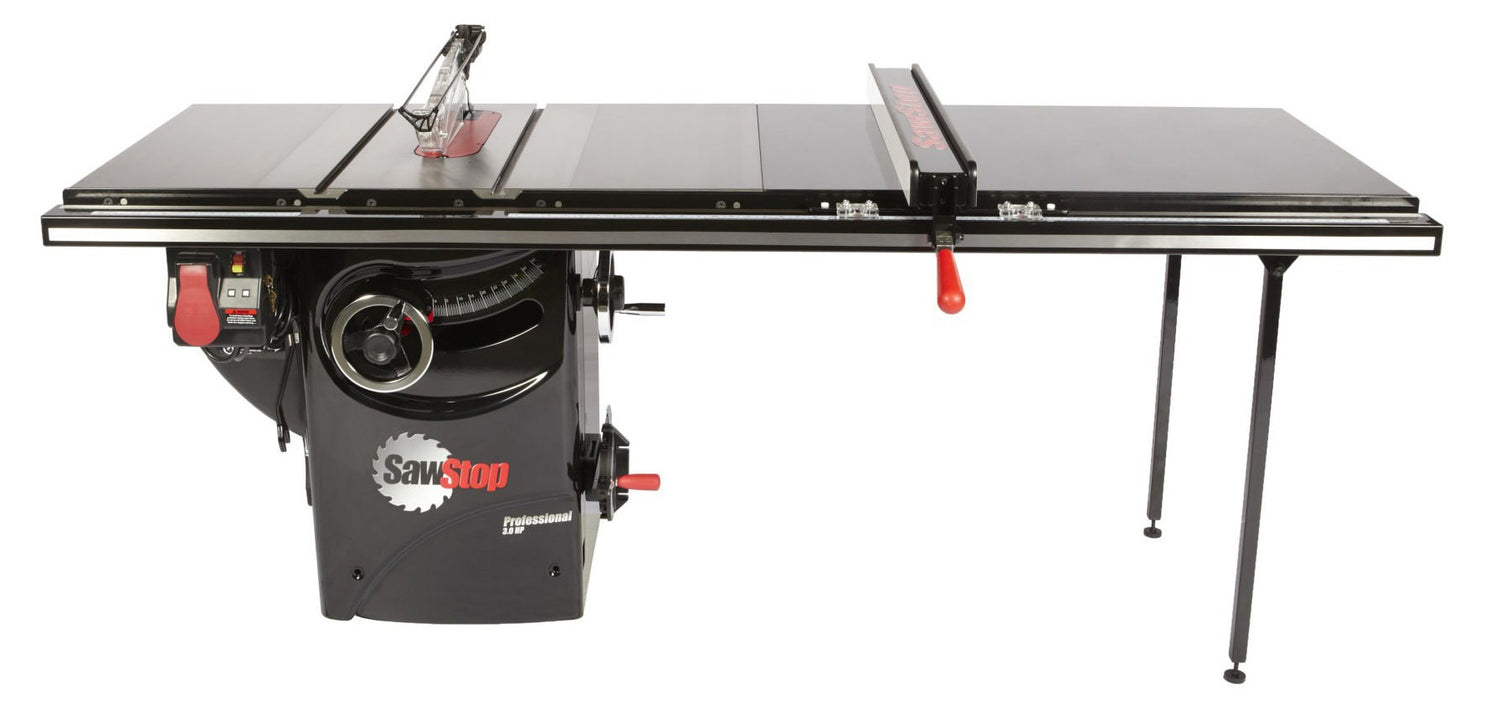

SawStop Professional Cabinet Saw

$3,920.00
Shipping calculated at checkout.
Horse Power
Fence/Rail/Table

Free Shipping on orders over $300.00 to Canada and Mainland USA (some exclusions apply)

Description

1. Choose your power

2. Choose your rip capacity

Additional accessories and configurations available.

Click here to build & price your custom SawStop saw on their website, or call us to learn more!

*Pickup or Freight added only*

How SawStop Works



​1. Monitor & Detect

  • The blade carries a small electrical signal.
  • When skin contacts the blade, the signal changes because the human body is conductive.
  • The change to the signal activates the safety system.

​2. Brake Activation

  • An aluminum brake springs into the spinning blade, stopping it in less than 5 milliseconds!
  • The blade’s angular momentum drives it beneath the table, removing the risk of subsequent contact.
  • Power to the motor is shut off.

​3. Reset

Resetting the saw yourself is easy. Simply replace the blade and affordable brake cartridge and your saw is operational. The entire reset process takes less than five minutes.

Specs



Weights - w/ 30 in fence systems: 367 lbs (1.75 HP), 380 lbs (3 HP)
Weights - w/ 36 in fence systems: 408 lbs (1.75 HP), 426 lbs (3 HP)
Weights - w/ 52 in fence systems: 431 lbs (1.75 HP), 449 lbs (3 HP)

Blade diameter: 10"
Blade tilt: Left
Max. depth of cut, blade at 0º: 3 1/8"
Max. depth of cut, blade at 45º: 2 1/4"
Max. rip, right of blade - 30 in: 30" (w/ 30" rails)
Max. rip, right of blade - 36 in: 36" (w/ 36" rails)
Max. rip, right of blade - 52 in: 52" (w/ 52" rails)
Max. rip, left of blade: 12"
Dado diameter: 8" (requires 8R2 brake, dado insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Table in front of blade (max. elevation): 10 1/4"

Overall saw dimensions: 44" W x 29 3/4" D x 34" H
Overall saw dimensions 30 in: 61 3/4" W x 31 1/8" D x 34" H
Overall saw dimensions 36 in: 69 1/8" W x 33" D x 34" H
Overall saw dimensions 52 in: 85 1/4" W x 33" D x 34" H
Motor configuration 1: PCS175: 1.75 HP, 120v, 14 A
Motor configuration 2:(user config. to 220v w/optional kit)
Motor configuration 3:PCS31230: 3 HP, 1 phase, 230v, 13 A
